HUATAO Industrial Wire Screen with 0.0014-0.0090 inch Wire Diameter and High Wear Resistance for Material Screening

MOQ: 1pcs
価格: USD 100-200 per pcs
標準パッケージ: 木箱かカートン箱
配達期間: 5-8勤務日
決済方法: L/C、T/T、Western Union、PayPal
供給能力: 100pcs/月
詳細 情報
製品の説明
詳細情報
起源の場所
中国
ブランド名
CHINA HUATAO
証明
ISO9001,CE,SGS etc.
モデル番号
ht
製品名:
Huatao Industrial Wire Wire Screen Black Pu-Strip Grommet 0.0014-0.0090インチワイヤ直径
キーワード:
ワイヤーメッシュパネル
原材料:
SS304、SS316、SS316L
応用:
材料のスクリーニング
耐久性:
耐磨性が高い
pacakge:
カートンまたは木製の箱
ハイライト:

0.0014-0.0090 inch Wire Diameter Wire Screen

,

High Wear Resistance Grommet Screen

,

Material Screening Rotex Replacement Screen

製品の説明
HUATAO Industrial Wire Screen Black PU-Strip Grommet 0.0014-0.0090 inch Wire Diameter
HUATAO Grommet Screens stand out as premium industrial wire solutions, specifically engineered to integrate seamlessly with Rotex® separators—a key advantage for operations relying on this equipment. Crafted from top-grade stainless steel (304, 304L, 316, 316L), these screens offer exceptional resistance to corrosion, acids, and alkalis, making them a reliable choice for harsh settings like mining and chemical processing.
What truly sets them apart is their reinforced edge design: options include black PU strips for general use, transparent FDA/EC-compliant PU strips for food-safe applications, or folded wire mesh edges for high-temperature environments above 80°C. This versatility ensures they adapt to diverse operational needs, while customizable mesh counts (14-230), wire diameters (0.0014-0.0090 inch), and open areas (46%-76.4%) allow precise tailoring to specific material separation requirements.
Installation is streamlined thanks to pre-fitted grommets, reducing downtime during replacements, and their robust build extends service life by minimizing wear—ultimately boosting productivity and cutting maintenance costs.
Key Parameters
Parameter Specification
Mesh Material Stainless Steel 304, 304L, 316, 316L
Edge material Generally reinforced strips are made of PU, canvas, silica gel, etc.
Mesh type Woven mesh
Mesh count 14-230
Wire diameter 0.0014-0.0090 inch
Open area 46.0%-76.4%
Detailed Specifications
Item Mesh Size Wire Size (in.) Microns Open Area %
1 14 0.009 1580 76.4
2 16 0.009 1360 73.3
3 18 0.009 1180 70.2
41 230 0.0014 74 46
Edge Type Options
HUATAO Industrial Wire Screen with 0.0014-0.0090 inch Wire Diameter and High Wear Resistance for Material Screening 0
Black PU-Strip Grommet Screen
HUATAO Industrial Wire Screen with 0.0014-0.0090 inch Wire Diameter and High Wear Resistance for Material Screening 1
Transparent PU-Strip Grommet Screen

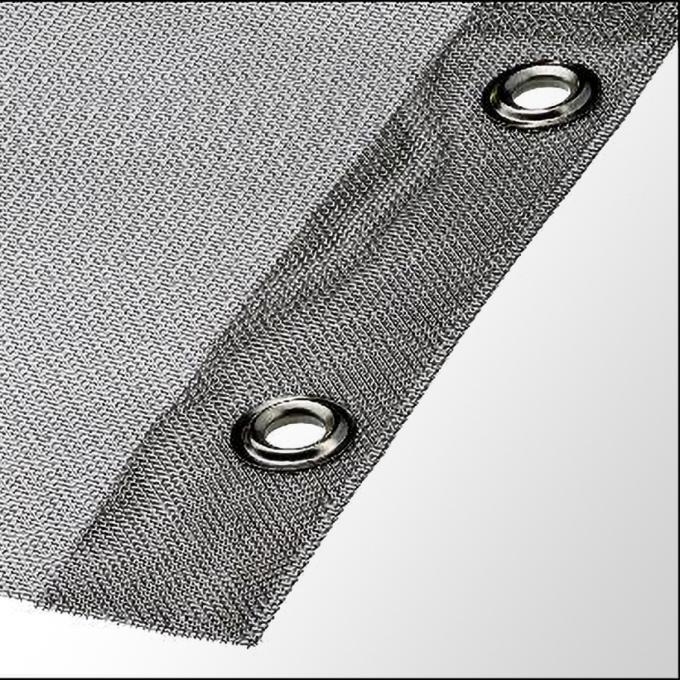

180° Folded Edge Grommet Screen
180° Folded Edge Grommet Screen
Production Process
HUATAO Industrial Wire Screen with 0.0014-0.0090 inch Wire Diameter and High Wear Resistance for Material Screening 3
Packaging & Logistics
Wooden box package for secure shipping and handling.
HUATAO Industrial Wire Screen with 0.0014-0.0090 inch Wire Diameter and High Wear Resistance for Material Screening 4
HUATAO Industrial Wire Screen with 0.0014-0.0090 inch Wire Diameter and High Wear Resistance for Material Screening 5
Applications
HUATAO Industrial Wire Screen with 0.0014-0.0090 inch Wire Diameter and High Wear Resistance for Material Screening 6
HUATAO Hot-Selling Polyurethane Products
Product Type Product Type
Urethane Screen Tufflex Screen
Polyurethane Dewatering Screen Mesh WS 85 Modular Screen
Polyurethane Screen Panels Rotex Replacement Screens
Rubber Screen Panel Vibrating Screen Mesh
Self cleaning Wire Mesh Shale Shaker Screen
HUATAO Industrial Wire Screen with 0.0014-0.0090 inch Wire Diameter and High Wear Resistance for Material Screening 7
